Rectangle VC601 BLE TPMS Systems Tire Pressure Monitoring System Bluetooth 4.0 Low Energy APP DC 3V 4 Internal Sensors
The TPMS is only Combined with the users’ smart phone, Please pay attention to the details.

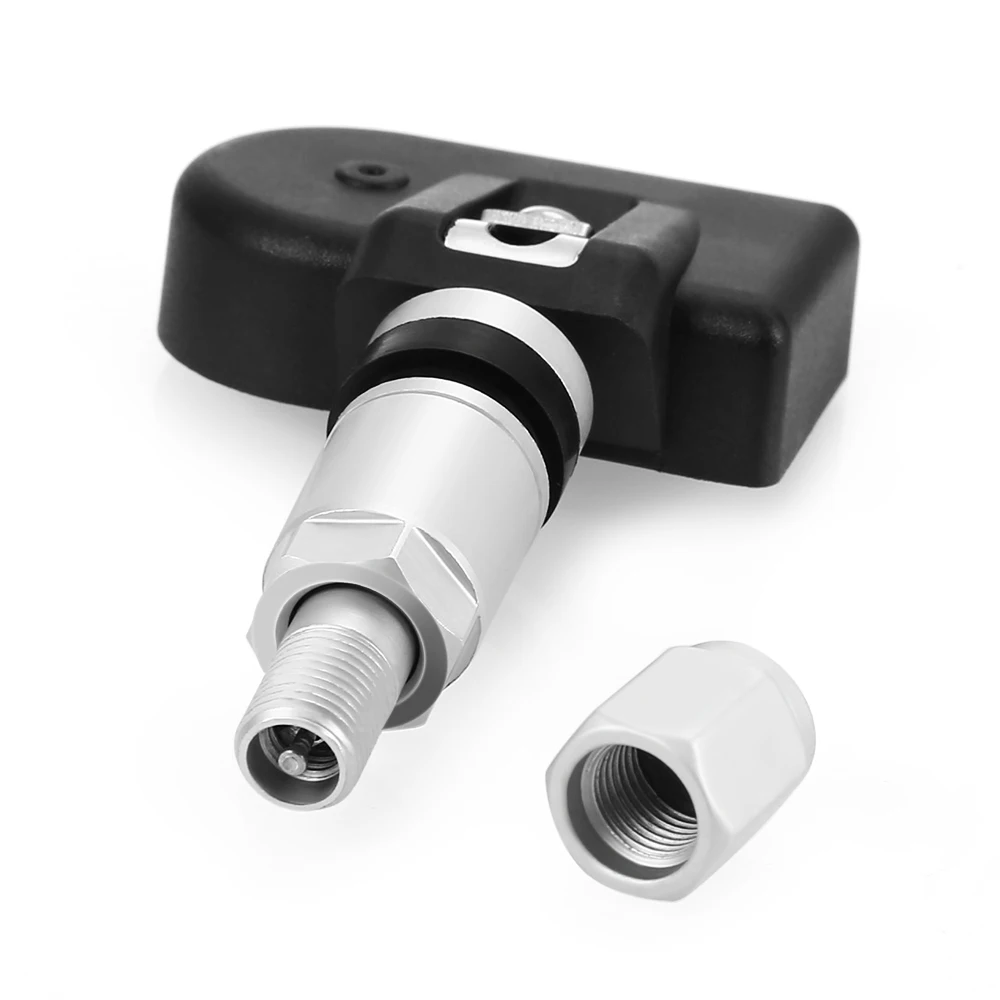

The Sensor diameter :1.5cm
What Is BLE TPMS
Bluetooth Low Energy Tire Pressure Monitoring System, also called BLE TPMS, uses pressure monitoring sensors within each tire to monitor specific pressure levels. Combined with the users’ smart phone, it lets driver get the real-time tire pressure data, temperature data and status, warning messages without the need for extra cables or an extra display device.
What You Will Get
– BLE TPMS App offers the real-time tire pressure data, temperature data and status
– Non-stop monitor always keeps an eye on your car’s performance
– Show four wheels’ tire pressure and temperature simultaneously
– Reliable alarm system delivers audio alerts whenever an unusual situation occurs
– High and low tire pressure alarm
– Air leakage condition alarm
– No signal alarm
– Low power alarm
1. Fast Leakage Alert
It will start when the tire pressure leakage over 5Kpa in 5s
2. Low Leakage Alert
It will start to warn when the tire pressure is under the presupposed lower limit
3. High Pressure Alert
It will start to warn when the tire pressure is over the upper limit
4. Low Pressure Alert
It will start to warn when the tire pressure is under the lower limit
5. High Temperature Alert
It will start to warn when the inner tire temperature is over the upper limit
6. No Signal Alert
It will start to warn when the tire condition can not be detected over time
7. Lower Power Alert
It will start to warn when the battery voltage is under the presupposed limit
Category: BLE TPMS
Display way: App
App Name: BLE TPMS
Input voltage: DC 3V
Optional pressure units: Psi, kPa, Bar
Optional temperature units: Degree.C, Degree.F
Operating frequency: 2.4GHz
Tire pressure detection range: 100 – 1300kPa
Tire pressure detection accuracy: + / – 10kPa
Working humidity: 95 percent max
Tire temperature accuracy: + / – 3 Degree.C
Storage temperature: -45 Degree.C – 125 Degree.C
Operating temperature: -40 Degree.C – 85 Degree.C
Operating current: 100uA
Static current: 2.2uA and less
Battery capacity: 330mAh
Battery life: 5 – 8 years
Waterproof rate: IP67
|Type||The Cigarette Lighter Type|
|Dimensions and Weight|
|Product weight||0.1430 kg|
|Package weight||0.2610 kg|
|Package Size(L x W x H)||16.10 x 10.10 x 3.00 cm / 6.34 x 3.98 x 1.18 inches|
|Package Contents||4 x BLE TPMS, 1 x Box|
Question : If the match after 4 wheels, more than 3 minutes without data,How to do?
Anwser : you can properly deflate the tire or cheer operation please.

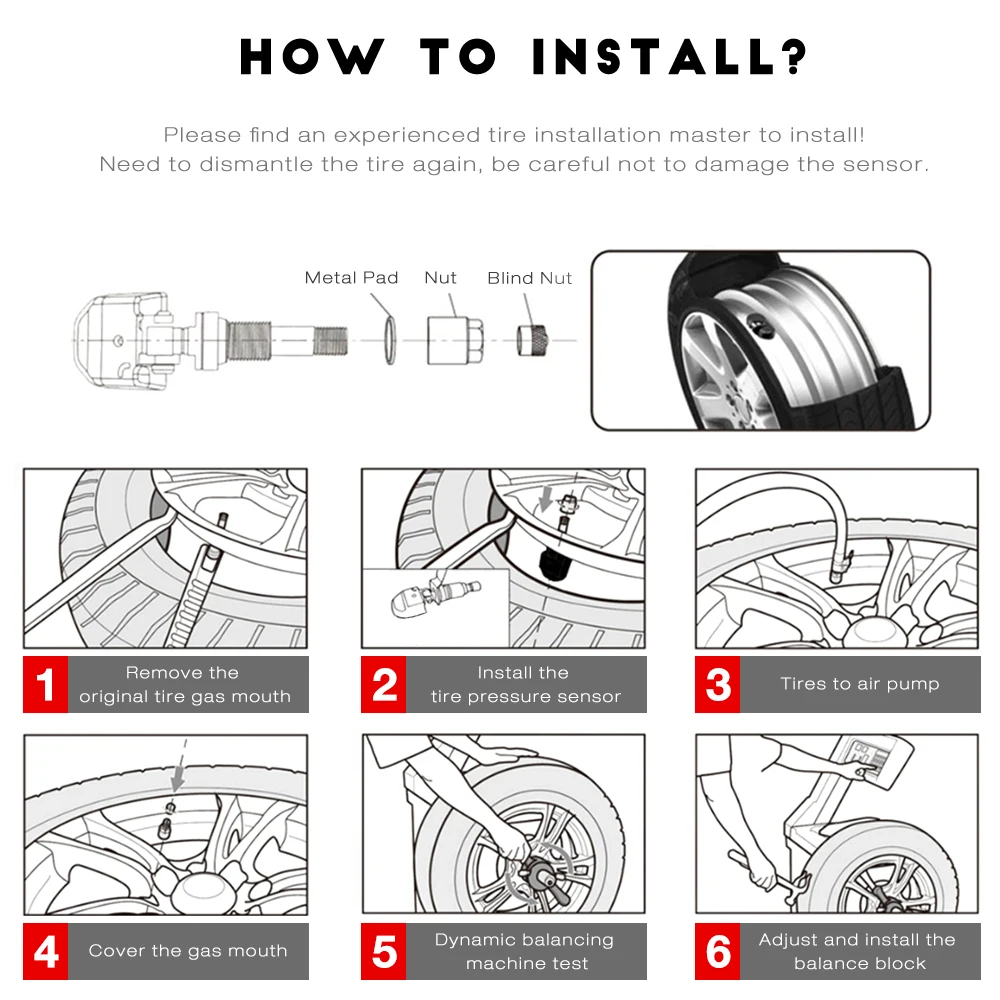

（When using the phone, if it is the first time to use the product, you need to put the product into the tire (if you can not install can repair mechanic installed), and then open the phone Bluetooth switch, and then open the phone APP software (TMPS) Automatically search for 4 tire pressure or manually enter the code for each tire pressure to match, if the match after 4 wheels, more than 3 minutes without data, you can properly deflate the tire or cheer operation (because sometimes the tire pressure sensor in standby mode Under pressure changes will be immediately connected and provide data to the phone)）
