Crane-M Smooth-3 Q 3 Axis Handheld Gimbal Stabilizer for GoPro Xiaoyi SJCAM Sport Action Ikeacasa Free Shipping Camera for iPhone Samsung Huawei
Zhiyun Crane-M 3 Axis Brushless Handheld Gimbal Stabilizer:
Zhiyun Crane-M is a paraprofessional gimbal. With payload weight of 125g-650g, it could support the vast majority of the compact digital cameras in the market, and fill up a vacancy between phone and mirrorless camera at the same time. Crane-M only weights 740g which is lighter than Crane, but inherited the new technology of 3-axis of unlimited rotation, Bluetooth connection from Crane. If we take Crane as a professional photographic equipment, Crane-M would be the entry level paraprofessional product created by Zhiyun then.
360° unlimited rotation separately in 3 axes under locking mode. Inversion and handheld shooting are available.
Payload weight is from 125g to 650g. Can support from action camera, mobiles, compact cameras to mirrorless cameras.
Crane-M is the first gimbal which could control your camera. Only after connecting the gimbal with the USB cable, it could realize the control of photo shooting and focal distance, which makes the gimbal and your camera to be one and saves the time of adjustment after changing each scene.
Through the APP “Zhiyun Camera”, you can control zooming in/out, face tracking, video/photo switch and exchanging, etc.
The improvement has been done on size, weight (only 740g) and design of Crane-M compared to Crane, which makes it lighter and smaller.
Tool-less mounting system makes it possible to complete balance adjustment within 1 minute.
The flat large area of the four-way rocker, make it easier to control direction and speed precisely. Instead of the traditional five-way joystick, the flat rocker has a more comfortable operating experience.
26500 battery included can bring 12 hours of operating time. It could make you shooting all day long at least.
With 1/4″ screw at the bottom, the Crane-M is compatible with tripod, car shooting set, rocker, extension rod, etc.
Support Camera Model: All card-type digital camera in the market
Support Controllable Camera: For Sony RX series, H series, QX series and its all mirrorless camera series; For Panasonic GH series
Payload Weight: 125g-650g
Tilt/Roll/Pan Axis Mechanical Movement Range: 360° (Unlimited rotation)
Operation Current: 80mA~6000mA
Operation Temperature: -10℃~45℃
Battery Runtime: 12h-18h
Powered By: 2 * 26500 rechargeable li-ion battery (3.7V, 3600mAh)
Item Size: 15.4 * 14.4 * 33.7cm / 6.1 * 5.7 * 13.3in
Item Weight(without battery): 740g / 26.1
Package Size: 36.5 * 25 * 10.5cm / 14.4 * 9.8 * 4.1in
Package Weight: 1975g / 69.7oz
1 * Crane-M Stabilizer
1 * Battery Compartment
2 * 26500 Li-ion Battery
1 * Li-ion Battery Charger
1 * USB Cable
1 * Storage Box
1 * User Manual (English)
1 * Quick-start Tutorial (English & Chinese)
When the gimbal is not in use or placed on the table, please ensure it is powered off.
Please read the user manual carefully to ensure the correct installation and a far superior experience in using.
Zhiyun Smooth-3 3-Axis Brushless Smartphone Handheld Gimbal Stabilizer:
Innovative Handwheel for Precise Camera Settings
Designed with a unique handwheel on its control panel, Smooth-3 brings various camera settings, including exposure compensation, ISO, white balance, shutter speed and focusing, to your fingertips, allowing real-time precise control of both the camera and stabilizer.
Unprecedented Max. 260g Payload
Empowered by the 5th Instune Algorithmic System which realizes 40% increase in motor torque and 35% improvement in respond speed compared to earlier versions, the Smooth-3 sets up a new benchmark for the industry supporting a max. payload of 260g. This not only significantly improves its system stability, but also allows more extensive phone shooting applications with multiple add-on options, such as external lens, portable lamp or microphone etc.
Real-time Mobile Charging thru Gimbal
A 5V/1000mA power output port on the gimbal allows convenient real-time charging to the smartphone, enhancing both the portability and practicability of phone-shooting to utmost extent.
Record-breaking 14-hour Continuous Runtime
Smooth-3 comes standard with one 26650 rechargeable battery, supporting unprecedented ultra-long continuous runtime up to 14 hours. Meanwhile, the Micro USB power port at the side of the handle allows convenient charging through direct power source with a USB port.
Comprehensive APP with Multiple Intelligent Functions
The newly upgraded smartphone APP – ZY Play – not only allows customized parameter settings for photo/video shooting and gimbal mechanical controls, allowing more subtle adjustments with exposure compensation, ISO, white balance and multi-style filters etc., but further supports multiple intelligent functions, including time lapse, long exposure, panoramic imaging and more, to literally turn your phone into a real filmmaking device.
Innovative 2-way Mobile Clamp
Elaborately engineered using top-grade aluminum material processed through high-precision CNC machining, all operations on Smooth-3 are guaranteed with outstanding smoothness. The unique 2-way mobile clamp design allows easy switch of mounting direction, either horizontal or vertical, to adapt various application needs.
One-step Precise Balancing
Designed with a unique telescopic arm featured with detailed scale mark for precise fixing, balance adjustment on Smooth-3 is made much easier and more accurate.
Universal Mounting Port to Enhance Creativity
Equipped with an universal 1/4″ threaded hole at the bottom, Smooth-3 can be mounted to various photography equipment and apparatus, such as tripod mount, extension rod or suction cup, so you not only can produce rocker-arm footage, but can also make cool time lapse footage with ideal view while it operates with your hands free!
Direct Firmware Upgrade via APP
The Smooth-3 firmware is subject to constant upgrade via convenient connection with ZY Play, the dedicated mobile APP via Bluetooth connection, to ensure up-to-date performance.
Compatible Models: For smartphones within 6.0 inches; for GoPro Hero 3/4/5 and other action cameras with similar dimension
Valid Payload: 75g~260g
Tilt Mechanical Range: 320°
Roll Mechanical Range: 320°
Pan Mechanical Range: 360° (Unlimited)
Controllable Tilt Angle: -135°~+185°
Controllable Roll Angle: -30°~+30°
Controllable Pan Angle: 360° (Unlimited)
Following Deviation in Static State: ±0.01°~±0.04°
Following Deviation in Motion State: ±0.05°~±0.3°
Operation Voltage: 3.6V~4.3V (Min.~Max.)
Operation Current: Min. 80mA; Standard 110mA; Max. 6000mA
Charging Voltage: 5V
Charging Current: 2000mA
Output Voltage: 5V
Output Current: 1000mA
Operation Temperature: -10℃~+45℃
Battery Runtime: Min. 8h; Standard 12h; Max. 14h
Charging Time: 2.5h
Item Size: 13.4 * 9.7 * 30.3cm / 5.3 * 3.8 * 11.9in
Item Weight: 440g / 15.5oz
Package Size: 37.3 * 15.5 * 7cm / 14.7 * 6.1 * 2.8in
Package Weight: 1200g / 42.3oz
1 * Gimbal Stabilizer
1 * 26650 Battery
1 * Micro USB Cable
1 * Storage Bag
1 * User Manual
Camera and smartphone are not included.

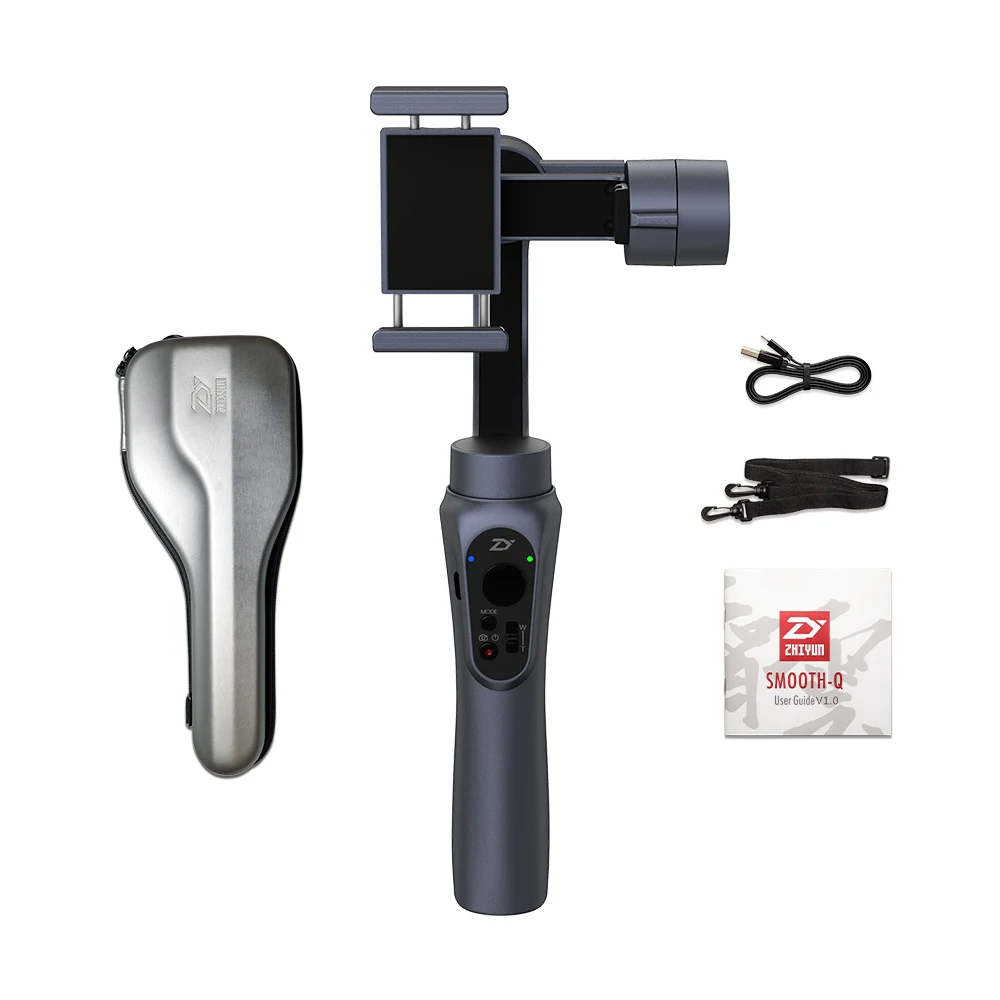

Zhiyun Smooth-Q 3-Axis Handheld Gimbal Stabilizer:
Real-time mobile charging available;
Auto object tracking & time-lapse & Multi-style filter options;
Instant manual zooming control through the stabilizer;
Individualized multi-color design.
Zhiyun Smooth-Q applies the 5th Generation Honeycomb core technology.
Compared with other gimbals of Smooth series, its motor performance and response rate is 40% and 30% improved respectively.
Maximum payload is 220g, allowing add-on lens with focal length in various specifications. Kinds of fill light and many other photography accessories.
50g gimbal body lighter than OSMO Mobile gimbal.
450g totally weight, with high molecular compound material, which is even lighter than a can of Coca Cola (330ML).
There is a 1/4″ screw at the button, you can mount tripod on it.
Convenient power output for real-time mobile charging. The USB port at the bottom supports 5V/2000mA power output, you can charge your phone while shooting. More than that, plug-in soft lights and other extended accessories are available as well.
Splash and Snowy weather are acceptable. It can rotate freely even under extremely high temperature (up to 45℃）and low temperature (minus 15℃).
No need counterweight any more. Featuring advanced electronic tech allows one-step balancing by simply adjusting the knob on the rolling axis.
The built-in 26650 Li-ion battery of Smooth-Q enables 12-hour continuous ultra-long work time. Meanwhile, it is rechargeable by connecting to mobile power supply.
Smooth-Q has buttons to Photo/Record, Zoom In/Out and Get Rear Camera/Selfie Mode Transferred. Updated APP-ZY PLAY APP supports Auto-Tracking, Time-Lapse and Filter Options.
Color: Jet Black
Panning Angle: 360°
Rolling Angle: ±30°
Tilting Angle: +185°, -135°
Operating Time: 8~12 hours
Operating Temperature: -10℃ to 45℃
Valid Payload: 75g~220g
Charging Current: 1500mA
Item Size: 11.8 * 10.5 * 28.5cm / 4.7 * 4.1 * 11.2in
Item Weight: 450g / 15.9oz
Package Size: 36.8 * 15.5 * 7cm / 14.4 * 6.1 * 2.8in
Package Weight: 1000g / 35.3oz
1 * Zhiyun Smooth-Q Mobile Gimbal
1 * Micro USB Charging Cable
1 * Carrying Bag
1 * User Manual (English)
Smartphones are not included.
